UV Laser Copper Clad Ceramic Substrate Featuring Interior Coating Engineered for Electronic Packaging and Heat Dissipation

Product Description:

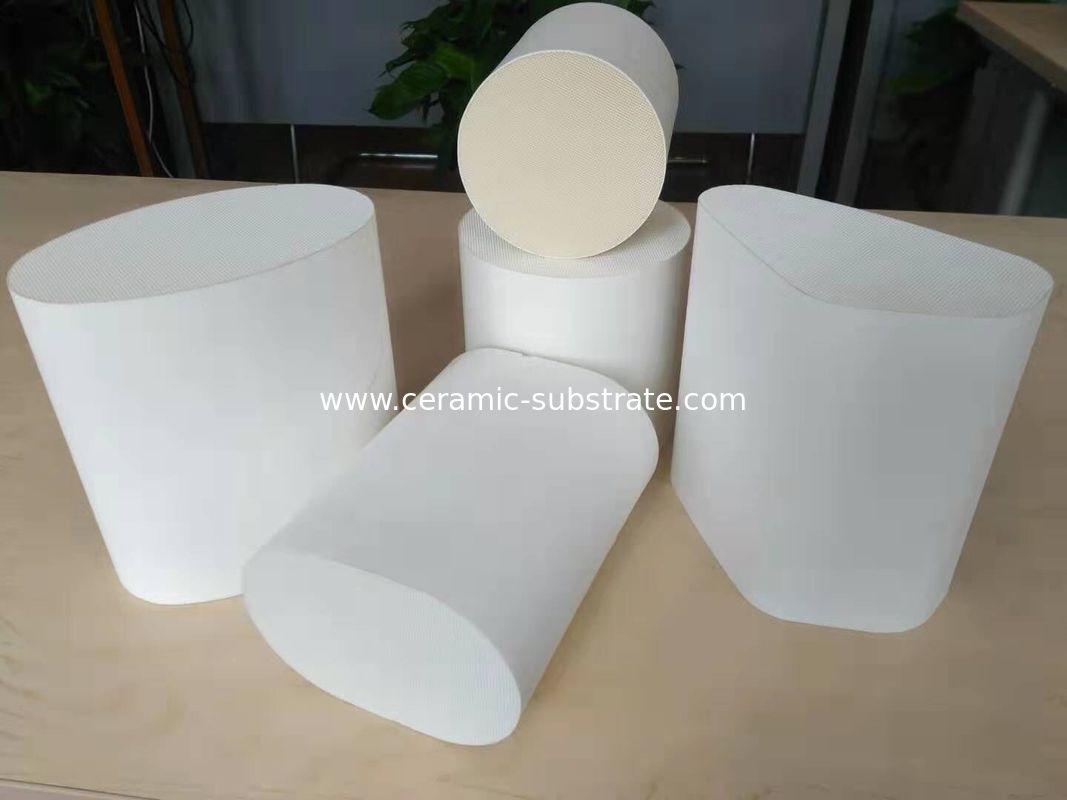

The Ceramic Substrates are advanced materials designed specifically for high-performance applications such as Diesel Oxidation Catalysts. These substrates provide a reliable and efficient foundation for catalytic processes, ensuring optimal performance under demanding conditions. The product line includes a variety of wattage options, including 7W, 10W, 15W, 20W, 25W, and 30W, allowing customers to select the ideal power rating to meet their specific operational requirements.

One of the key features of these Ceramic Substrates is their exceptional moisture resistance, with a moisture absorption rate of less than 0.05%. This low moisture absorption characteristic significantly enhances the durability and longevity of the substrates, making them suitable for environments where exposure to moisture could otherwise compromise performance. The substrates are also equipped with a pressure sensitive adhesive type, which facilitates easy and secure installation without the need for additional bonding agents or complex mounting procedures.

The Ceramic Substrates are available in multiple material compositions, including Aluminum Nitride Substrate (AlN Substrate) and Alumina Substrate (Al2O3 Substrate). Each material offers unique advantages: the Aluminum Nitride Substrate is renowned for its excellent thermal conductivity and electrical insulation properties, making it ideal for applications requiring efficient heat dissipation and electrical isolation. On the other hand, the Alumina Substrate provides superior mechanical strength and chemical stability, which are critical for maintaining structural integrity and resistance to harsh chemical environments typically encountered in diesel oxidation catalytic systems.

In addition to their robust mechanical and thermal properties, these substrates are designed to be compatible with laser processing techniques, specifically utilizing a laser wavelength of 355 nm. This compatibility allows for precise and high-quality marking, cutting, or structuring of the substrate surface, enabling customization and integration into complex catalytic systems with high accuracy and repeatability.

The combination of Aluminum Nitride Substrate and Alumina Substrate options within this Ceramic Substrate product line ensures versatility and adaptability across a wide range of industrial applications. Whether the priority is enhanced thermal management, mechanical durability, or chemical resistance, these substrates deliver reliable performance. Their tailored wattage options and pressure sensitive adhesive type further contribute to ease of use and operational efficiency, making them a preferred choice for manufacturers and engineers working on diesel oxidation catalyst systems.

Overall, the Ceramic Substrates offer a comprehensive solution that balances material excellence, functional versatility, and practical installation features. Their low moisture absorption, laser wavelength compatibility, and multiple wattage ratings provide a robust platform for advancing diesel oxidation catalyst technologies. By choosing these substrates, customers benefit from improved catalyst effectiveness, extended product life, and streamlined manufacturing processes, all crucial factors in the pursuit of cleaner and more efficient diesel engine emissions control.

Features:

• Product Name: Ceramic Substrates
• Surface Finish: Polished or Matte
• Cells Density: 100～600 CPSI
• System: Pneumatic Type
• Warranty: 12 Months
• Coating Type: Interior
• Suitable for Industrial Ceramic Substrates applications
• Compatible with IGBT Ceramic Substrate technologies
• Ideal for Ceramic Circuit Substrates use

Technical Parameters:

Applications:

The Yuxing Ceramic Substrates, originating from China, are engineered to meet the demanding requirements of advanced electronic applications. With a moisture absorption rate of less than 0.05%, these substrates ensure exceptional stability and reliability in various environments, making them ideal for power electronics and automotive electronics where performance and durability are critical.

Utilizing UV laser technology for precision processing, Yuxing ceramic substrates offer superior quality with either a polished or matte surface finish. This flexibility in surface finish allows for optimal integration across different manufacturing needs, particularly in applications requiring high thermal conductivity and electrical insulation.

One of the primary application occasions for Yuxing ceramic substrates is in OBC (On-Board Charger) and DC-DC module substrates. These components are essential in electric vehicles and renewable energy systems, where efficient power conversion and heat dissipation are paramount. The interior coating type of Yuxing substrates enhances their performance by providing additional protection and stability under high stress conditions.

In the renewable energy sector, Yuxing ceramic substrates are extensively used as wind power and solar inverter substrates. These substrates support the high-power electronic modules that convert and regulate energy from wind turbines and solar panels. Their excellent moisture resistance and precise surface finish contribute to long-term reliability and efficiency in harsh outdoor conditions.

Additionally, Yuxing ceramic substrates find applications in LED substrates and RF modules, where their low moisture absorption and high-quality laser processing ensure superior electrical insulation and thermal management. This makes them suitable for high-frequency and high-power applications in telecommunications and lighting industries.

Overall, the versatility of Yuxing ceramic substrates in power electronics, automotive electronics, renewable energy inverters, and RF modules highlights their critical role in modern electronic manufacturing. Whether used in OBC / DC-DC module substrates or wind power / solar inverter substrates, these ceramic substrates provide a robust foundation for high-performance electronic devices.

Customization:

Yuxing offers customized Industrial Ceramic Substrates designed to meet your specific application needs. Our Ceramic Substrates are manufactured in China, ensuring high quality and reliable performance. We provide IGBT Ceramic Substrate solutions with a Pneumatic Type system that guarantees precision and efficiency.

Customers can choose between polished or matte surface finishes to suit their design and functional requirements. Our Copper Clad Ceramic Substrate options feature a cells density ranging from 100 to 600 CPSI, allowing for optimal thermal and electrical performance.

For enhanced adhesion, we utilize pressure sensitive adhesive types, ensuring secure and durable bonding. Additionally, our substrates are processed using advanced UV Laser technology, providing precise and clean cutting to meet stringent industrial standards.

Trust Yuxing for customized ceramic substrate solutions that combine advanced technology with superior materials, tailored to support your industrial applications effectively.

Support and Services:

Our Ceramic Substrates product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We offer comprehensive services including product selection guidance, application support, and troubleshooting assistance. Our experts provide detailed documentation, technical datasheets, and customization options to meet specific project requirements. Additionally, we offer testing and quality assurance services to guarantee the reliability and durability of our ceramic substrates in various industrial applications. For ongoing support, our team is available to assist with installation advice, maintenance tips, and any post-purchase inquiries to help maximize the efficiency and lifespan of your ceramic substrate solutions.

Packing and Shipping:

Our Ceramic Substrates are carefully packaged to ensure maximum protection during transit. Each substrate is individually wrapped in anti-static foam and placed in a sturdy, custom-fitted box to prevent movement and damage.

The packaging materials are selected to provide cushioning and to protect against moisture, dust, and mechanical shocks. Multiple boxes are then securely packed into a durable outer carton for bulk shipments.

We offer various shipping options to meet your delivery requirements, including standard, expedited, and freight services. All shipments are tracked and insured to guarantee safe and timely delivery.

For international orders, we comply with all necessary export regulations and provide required documentation to facilitate smooth customs clearance.

Should you have any special packaging or shipping requests, please contact our customer service team, and we will do our best to accommodate your needs.

FAQ:

Q1: What is the brand name of the Ceramic Substrates?

A1: The brand name of the Ceramic Substrates is Yuxing.

Q2: Where are Yuxing Ceramic Substrates manufactured?

A2: Yuxing Ceramic Substrates are manufactured in China.

Q3: What materials are used in Yuxing Ceramic Substrates?

A3: Yuxing Ceramic Substrates are made from high-quality ceramic materials designed to provide excellent thermal and electrical insulation.

Q4: What applications are suitable for Yuxing Ceramic Substrates?

A4: Yuxing Ceramic Substrates are suitable for use in electronics, automotive components, heating elements, and other industrial applications requiring reliable insulation and heat resistance.

Q5: Can Yuxing Ceramic Substrates withstand high temperatures?

A5: Yes, Yuxing Ceramic Substrates are designed to withstand high temperatures, making them ideal for environments that require thermal stability and durability.
